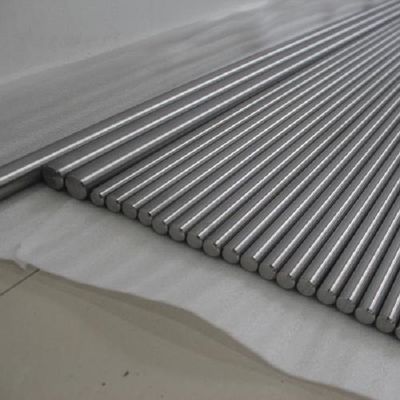

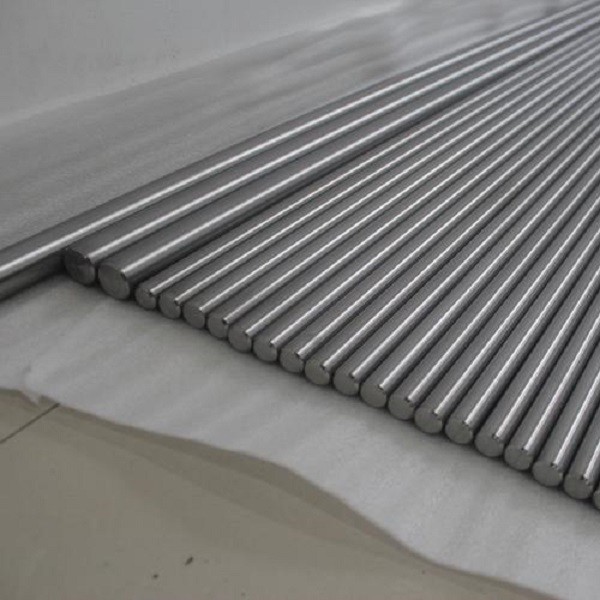

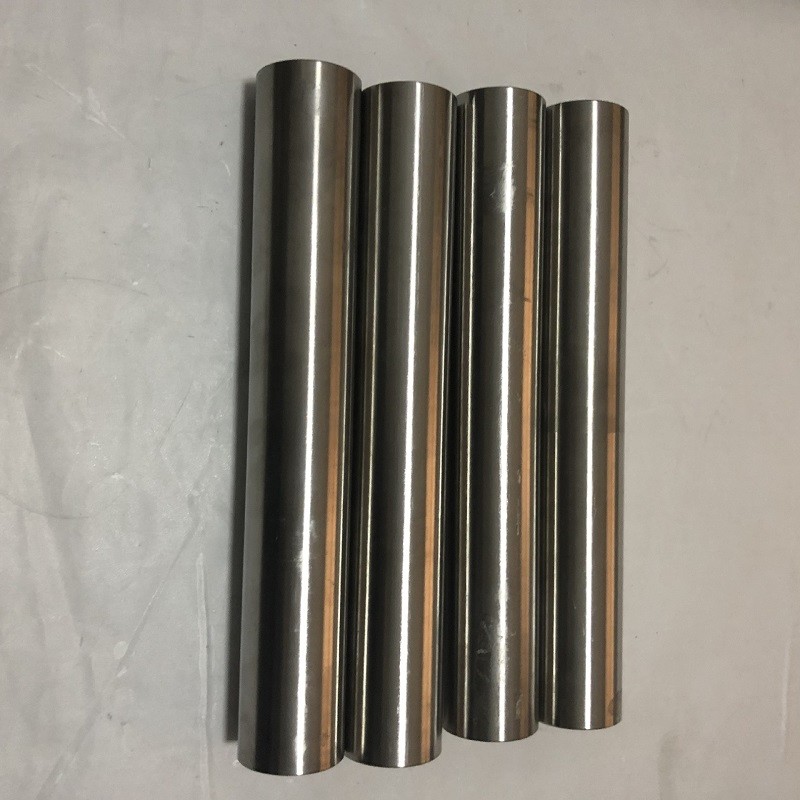

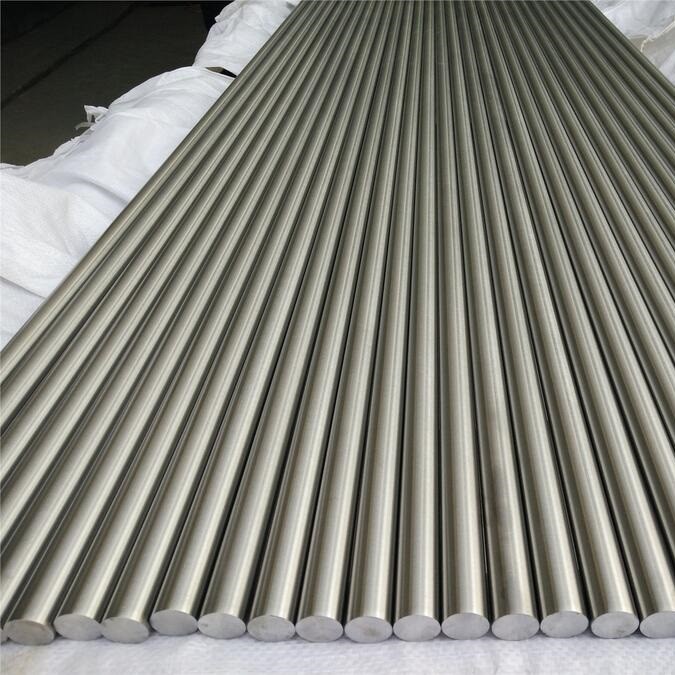

Titanium Bars & Rod ASTM B265 B348 Diameter 4 - 300mm Bright Titanium Bars
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |

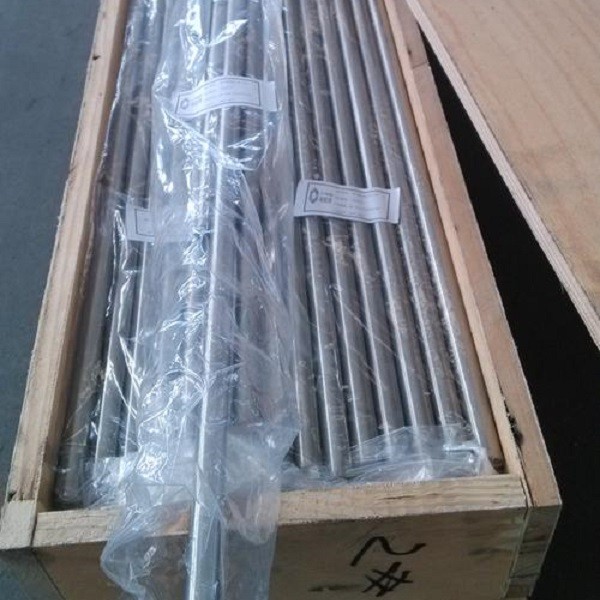

| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Titanium Bar | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Diameter | 4 - 300mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | ASTM B265 Titanium Bars,Bright Titanium Bars,B348 Titanium Bars |
||
Product Description
Titanium Bars & Rod ASTM B265 B348 Diameter 4 - 300mm Bright Titanium Bars
Titanium Alloy Bar / Rod
- Titanium Bars
- Material: Gr1,Gr2,Gr3,Gr4,Gr5,Gr9,Gr12,Gr23
- Standard: ASTM B348,ASTM F67, ASTM F136,ASTM 4928
- Dia:6.0-200mm
- Piece Length (Bars Come In Commercial Lengths)
- 6.0-14mm: Up to 3000mm
- 15-60mm: Up to 4000mm
- 61-200mm:Up to 6000mm
Technical Information:
We are capable of supplying all grades of commercial pure titanium and titanium alloys in accordance with AMS, ASTM specification or equivalent.
We have years of manufacturing experience with development and research and have the capability to produce difficult titanium alloy grades which related sensitive tests can be easily passed after checking by customers. All titanium bars will be done with 100%UT tests unconditionally, and the UT level can be AA or A1 or as per standard request, the best diameter tolerance we can reach is h6, and one special point we would like to show you is that the tensile strength can be more than 800MPA based on commercially pure titanium grade 4, also all titanium alloy can have higher tensile strength by using STA(Solution Treatment & Aging) and adjusting the chemical composition.
Regular titanium materials for titanium bar
| Material | Size | Available Standards |
| Titanium CP1 (Grade 1) | Diameter:3.0MM~250MM Length:1000~6000mm Customized sizes are available best diameter tolerance:h6 |
ASTM B348, AMS-4928 AMS-6931, AMS-T-9047 (6AL-4V Grade 5) ASTM-F67 (CP Grades 1-4) ASTM-F-136 (6AL-4V ELI) |
| Titanium CP2 (Grade 2) | ||
| Titanium CP3 (Grade 3) | ||
| Titanium CP1 (Grade 4) | ||
| Gr.9(Ti3AL2.5V) | ||
| Gr.5(Ti6AL4V) | ||
| Gr.7 | ||
| Gr.11 | ||
| Gr.12 | ||
| GR.16 | ||
| GR.17 |
Featured titanium materials for titanium bar
| Featured Titanium alloy grades | |
| Titanium 6Al-4V STA | AMS 4904 AMS 4965 AMS 6930 AMS T-9046 STA AMS T-9047 STA |
| Titanium 8Al-1Mo-1V | AMS 4916 AMS 4972 MIL-T-9046 MIL-T-9047 |
| Titanium 6Al-2Sn-4Zr-2Mo | AMS 4919 AMS 4976 AMS 4979 MIL-T-9046 AB-3 AB-4 MMS1203 DMS 2275 |
| DMS 1879 MIL-T-9046 TY 3 CMP G AMS 4975 MIL T-9047 UNS R54620 | |
| Titanium 6Al-2Sn-4Zr-6Mo | AMS 4981 MIL-T-9047 UNS 56260 |
| Titanium 6Al-6V-2Sn | AMS 4918 AMS 4936 AMS 4937 AMS 4971 AMS 4978 AMS 4979 MIL-T-9046 MIL-T-9047 UNS 56620 |
| Titanium 3Al-2.5V | ASTM B265 ASTM B337 ASTM B338 ASTM B348 ASTM B381 AMS 4943 AMS 4944 AMS 4945 MIL-T-9046 MIL-T-9047 |
| Titanium 5Al-2.5Sn | ASTM B265 ASTM B348 ASTM B381 AMS 4910 AMS 4924 AMS 4926 AMS 4966 MIL-T-9046 MIL-T-9047 COMP A |
| Titanium 15V-3Cr-3Sn-3Al | AMS 4914, AMS 4922 |
| Titanium 3Al-8V-6Cr-4Mo-4Zr | AMS 4939 AMS 4957 AMS 4958 MIL-T-9046 MIL-T-9047 AMS 6921 |
| Titanium 10V-2Fe-3Al | AMS 4983 AMS 4984 AMS 4986 AMS 4987 |
| Titanium 5Al-5Mo-5V-3Cr | MIL-A-46077 |
| ВT-9 (Ti-6,5Al-3,3Mo-1.5Zr-0,25Si) | GB/T2965-20007, GJB2744A-2007 |
Feature:
- Low Density
- Excellent Corrosion Resistance in acid and alkali salt
- High heat transfer capability
- Good biocompatibility
- Low elasticity module
- Low thermal expansion coefficient
- Superior strength-to-density ratios
- Good strength at low and high temperature
