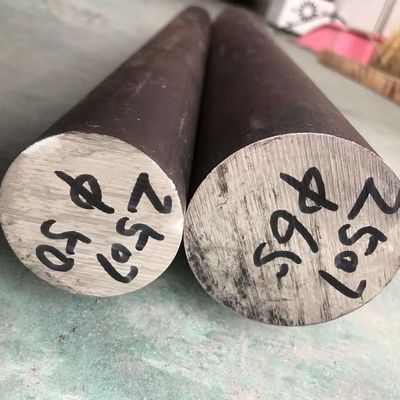

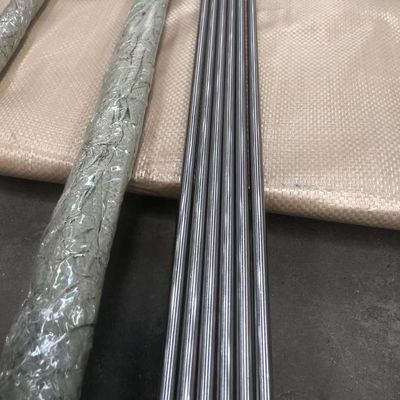

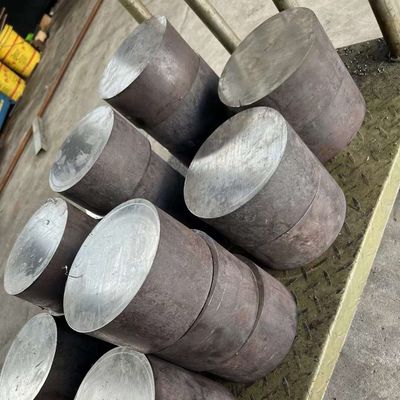

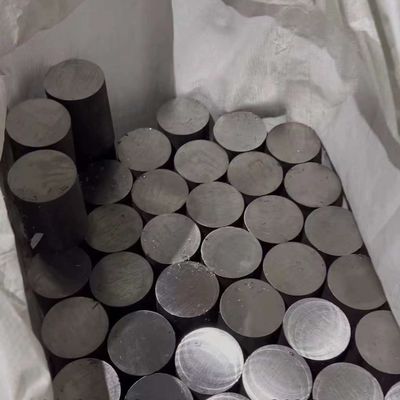

Hot Rolled & Bright Drawn 416 / AISI416 / 1.4005 Stainless Steel Round / Shaft in 6m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 416 |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 2500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Stainless Steel Round Bar | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 416 | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | Bright Drawn Stainless Steel Round,6m Length Stainless Steel Round,AISI416 Stainless Steel Round |
||
Product Description
Hot Rolled 416 Stainless Steel Round Bar Solid Solution Stainless Steel Rod OD5 - 350mm
| Product Name | Stainless Steel Bar |
| Material | 201/202/301/304/304L/316/316L/309S/310S/321/409/410/416/420/430/2205/904L etc |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,BS,GB |
| Technique | Cold drawn/hot drawn/cold rolled/hot rolled |
| Surface | Pickled, bright, polished |
| Edge | Mill Edge, Slit Edge |
| Diameter | 8-130mm |
| Length | 5.8/6m or custom |
| Application | construction field, ships building industry, petroleum & chemical industries, military and electricity industries, food processing and medical industry, boiler heat exchange,machinery and hardware fields |
What is 416 Stainless Steel Round Bar?
416 stainless steel round bar is a highly machinable grade 416 stainless steel, a martensitic chromium alloy. It has excellent strength and corrosion resistance properties and is commonly used for applications requiring high levels of machining accuracy, such as fasteners, bushings, and valve stems.
Chemical Composition
Spec: EN 10088-3:2005
1.4005 Steel
| Chemical Element | % Present |
|---|---|
| Carbon (C) | 0.06 - 0.15 |
| Chromium (Cr) | 12.00 - 14.00 |
| Manganese (Mn) | 0.0 - 1.50 |
| Silicon (Si) | 0.0 - 1.00 |
| Phosphorous (P) | 0.0 - 0.04 |
| Sulphur (S) | 0.15 - 0.35 |
| Molybdenum (Mo) | 0.0 - 0.60 |
| Iron (Fe) | Balance |
Properties
| Physical Property | Value |
|---|---|
| Density | 7.75 g/cm³ |
| Thermal Expansion | 9.9 x10^-6 /K |
| Modulus of Elasticity | 200 GPa |
| Thermal Conductivity | 24.9 W/m.K |
| Electrical Resistivity | 0.57 x10^-6 Ω .m |
Spec: EN 10088-3:2005
Bar - Up to 160mm Dia or Thickness
| Mechanical Property | Value |
|---|---|
| Proof Stress | 450 Min MPa |
| Tensile Strength | 650 - 850 MPa |
Supplied Forms
- Bar
Applications
- Typical applications include:
- Valve Parts
- Pump Shafts
- Automatic Screw Machined Parts
- Motor Shafts
- Washing Machine Components
- Bolts and Nuts
- Studs
- Gears
Properties of 416 Stainless Steel Round Bar
416 stainless steel is martensitic stainless steel with high sulfur content. This sulfur content makes it more machinable, making it easier to turn, drill, and mill than stainless steel. This material also has excellent corrosion resistance and is a popular choice for applications that require a higher resistance to pitting and crevice corrosion. 416 stainless steel is relatively cheap and can be heat-treated to achieve different strength levels.
Advantages of Using 416 Stainless Steel Round Bar
SS 416 bar offers great machinability, excellent corrosion and wear resistance, good formability, and improved strength over other traditional grades of stainless steel. It is ideal for use in highly corrosive environments requiring superior corrosion resistance, high-temperature applications, and those needing strength and ductility.
Machining of 416 Stainless Steel Round Bar
Machining 416 stainless steel round bars is relatively easy compared to other stainless steels. This material can be easily cut and shaped using standard machine tools. When machining, keeping the cutting tools sharp is recommended to avoid work hardening. 416 stainless steel has a lower ductility than austenitic stainless steel, which means it is more prone to breaking or chipping if not machined properly.
Heat Treatment of 416 Stainless Steel Round Bar
416 stainless steel round bars can be heat treated to achieve different strength levels. This process involves heating the material to a specific temperature and cooling it rapidly to achieve the desired properties. Heat treatment can improve the material’s machinability, toughness, and corrosion resistance. It is important to note that 416 stainless steel round bars should not be annealed as it can cause the material to lose its machinability.
Welding of 416 Stainless Steel Round Bars
Stainless steel 416 round bars can be welded using standard welding techniques such as TIG, MIG, and spot welding. However, it is important to note that this material is not recommended for welding as it can be prone to cracking. Welding should only be carried out by an experienced welder who has experience working with this material.
