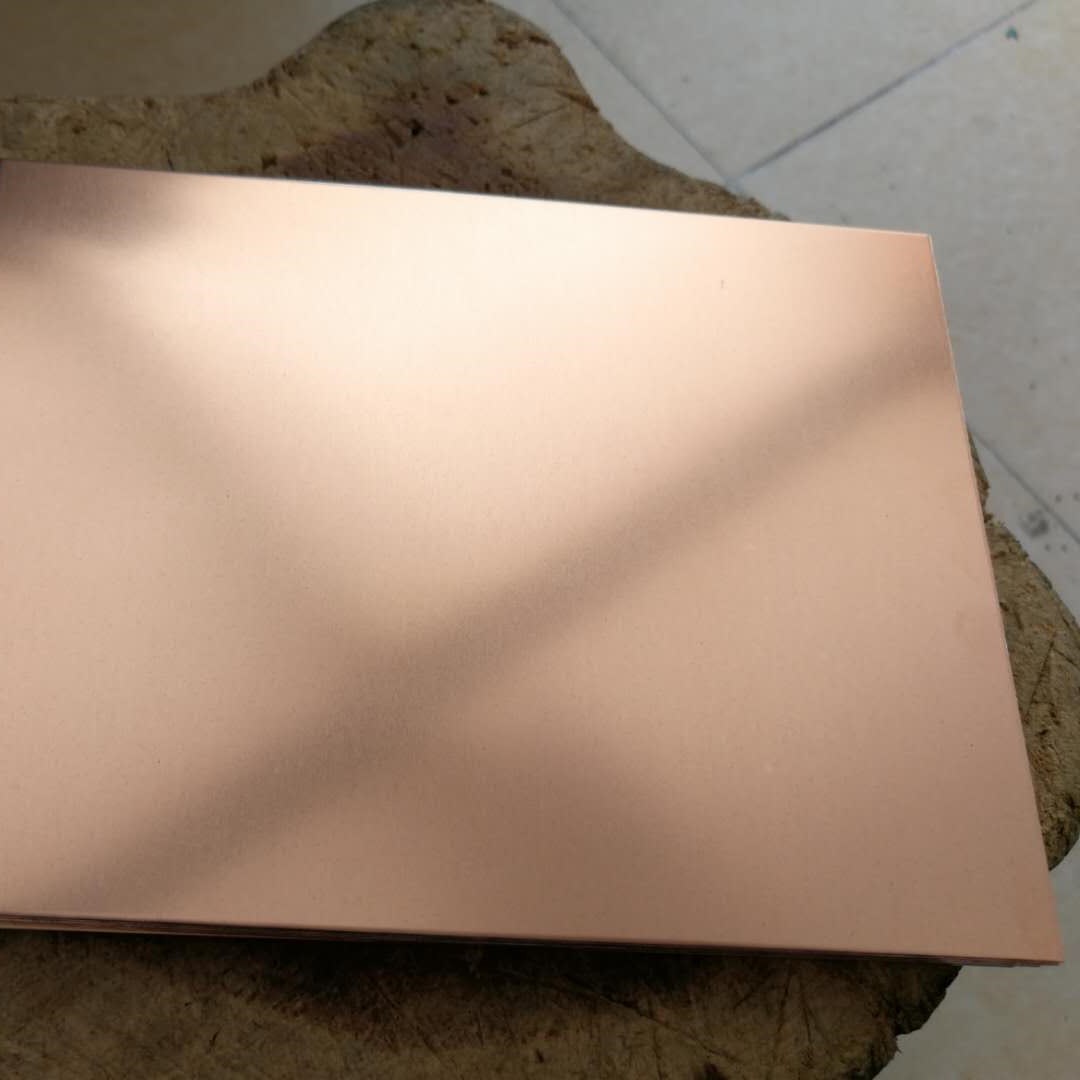

C110 / C11000 Copper Plate & Sheet Cu Sheet Alloy Copper Thickness Within 200mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C10200 C11000 C10100 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |
| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C10200 C11000 C10100 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 0.5 - 60.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | 200mm Copper Plate & Sheet,Alloy Copper Plate & Sheet,Cu Copper Plate & Sheet |
||
Product Description
C110 / C11000 Copper Plate & Sheet Cu Sheet Alloy Copper Thickness Within 200mm
|
Steel Grade
|
T1,T2,C10100,C10200,C10300,C10400,C10500,C11000,C10910,C10920,TC11200,C11600,
U1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000, C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,C63020, C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc |
|
Hardness
|
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
|
|
Surface
|
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
|
|
Thickness
|
0.1mm-120mm or as required
|
|
Width
|
0.6m-3m or as required
|
|
Length
|
Customized
|
|
Application
|
1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications |
|
MOQ
|
1 Ton
|
|
Payment term
|
30%TT Advance + 70% Balance
|
|
Packing
|
Standard Sea Worthy Packing
|
|
Price Term
|
CIF CFR FOB EX-WORK
|
Copper Sheet&Plate
We offer affordable, pure copper sheet and copper plate with FREE SHIPPING! These sheets are Pure Copper-C11000 Grade Oxygen-Free - 99.95+ % pure copper! Copper sheet roll conforms to the ASTM-B152 specifications, This high purity provides the premium quality needed for many projects and applications in a wide range of industries and uses. Our copper sheets and rolls are used for a variety of applications including DIY, Construction, Counter Tops, Bar Tops, Furniture, Backsplashes, Embossing, RFI Shielding, Manufacturing, Electrical Applications, Research and Development, Arts and Crafts, Jewelry Making, and Much More!
Copper plates have a thickness of ¼” (6mm) or more, while copper sheets are less than ¼” (6mm) thick.
Standard & Certification: ASTM-B152
Manufacturing Process:
-Precision Laser cutting(tolerance ±0.3mm)
-Plastic film attached
-Sturdy cardboard box packing
Material: UNS C11000 grade oxygen-free copper
Standard: ASTM-B152
Manufacturing process:
-Precision Laser cutting(tolerance ±0.3mm)
-Plastic film double side attached
-Muti-layer bubble film packing
Cu perforated sheet chemical composition
| Grade | Pb | Bi | P | S | Zn | Cu + Ag | As | Sn | Sb | Fe | S | Ni | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS C10100 | .003 | .001 | .002 | .004 | .003 | 99.97 | .002 | .002 | .002 | .004 | .004 | .002 | .002 |
| UNS C11000 | .005 | .001 | .005 | 99.9 | .002 | .002 | .005 | .005 | |||||
| UNS C12000 | .004 to .012 | 99.9 | |||||||||||
| UNS C12200 | .015 to .04 | 99.9 | |||||||||||
| UNS C10200 | .004 | .001 | .002 | .004 | .003 | 99.95 | .002 | .002 | .002 | .004 | .004 | .002 | .003 |
| UNS C10400 | .005 | .001 | .005 | 99.9 | .002 | .002 | .005 | .005 |
Copper coil mechanical property
| Grade | Temper | Tensile Strength Rm/MPa | Elongation A11.2/% | Hardness HV |
|---|---|---|---|---|
| UNS C12000 | O | ≥205 | ≥30 | ≤7 |
| UNS C11000 | O | ≥195 |
≥30
|
|
| UNS C10100 | H | 245 to 345 | ≥8 | 80 to 110 |
| UNS C12200 | 1/2H | 215 to 275 | ≥25 | 60 to 90 |
| UNS C10400 | ≥350 | to | ≥110 | |
| UNS C10200 | E to H | 295 to 380 | to | 90 to 120 |
