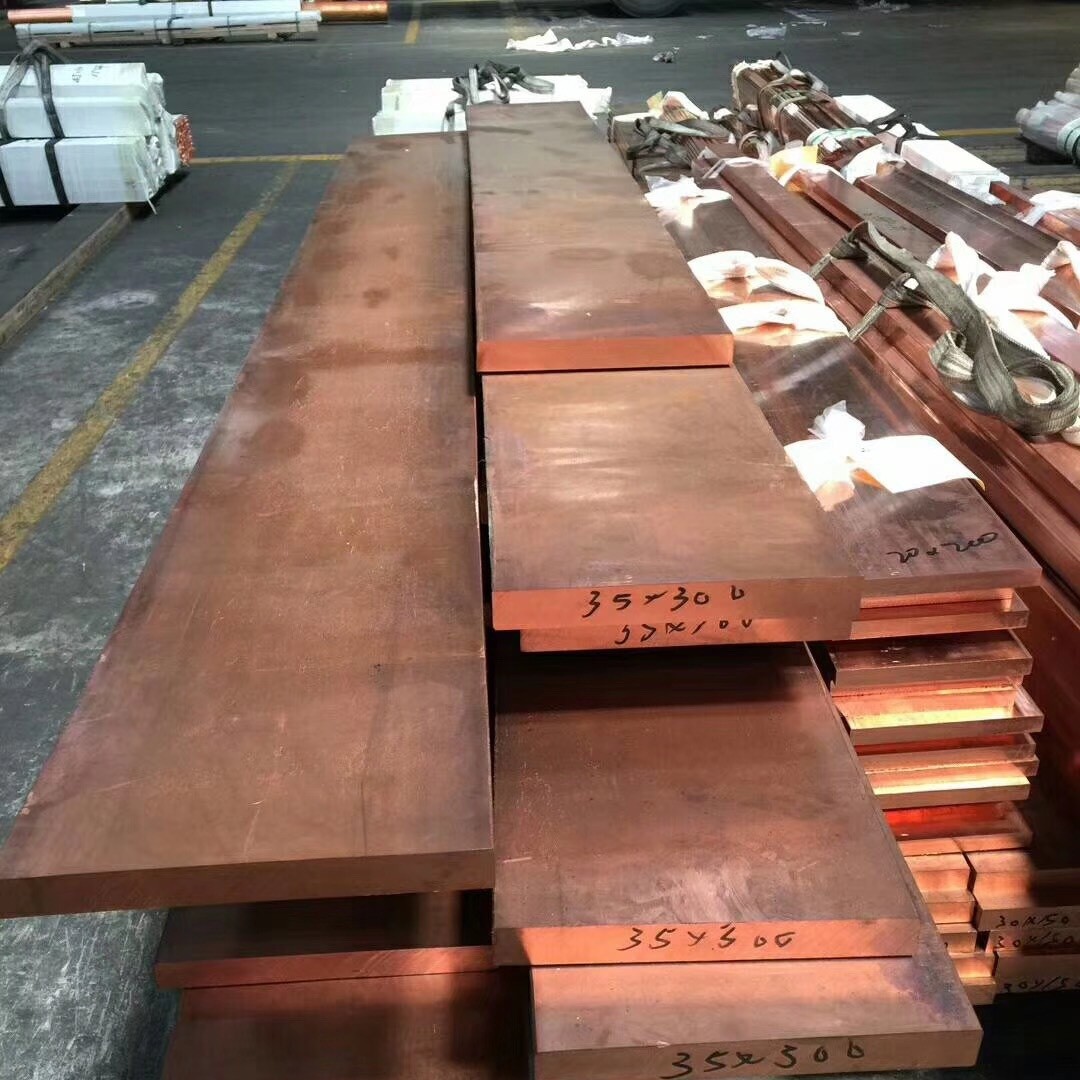

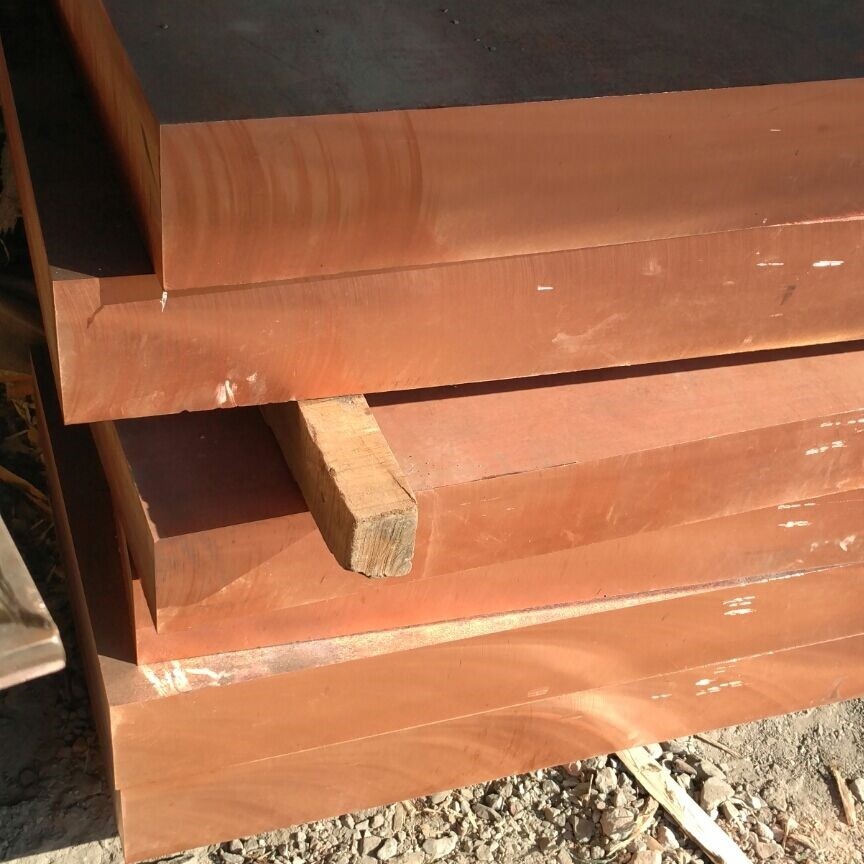

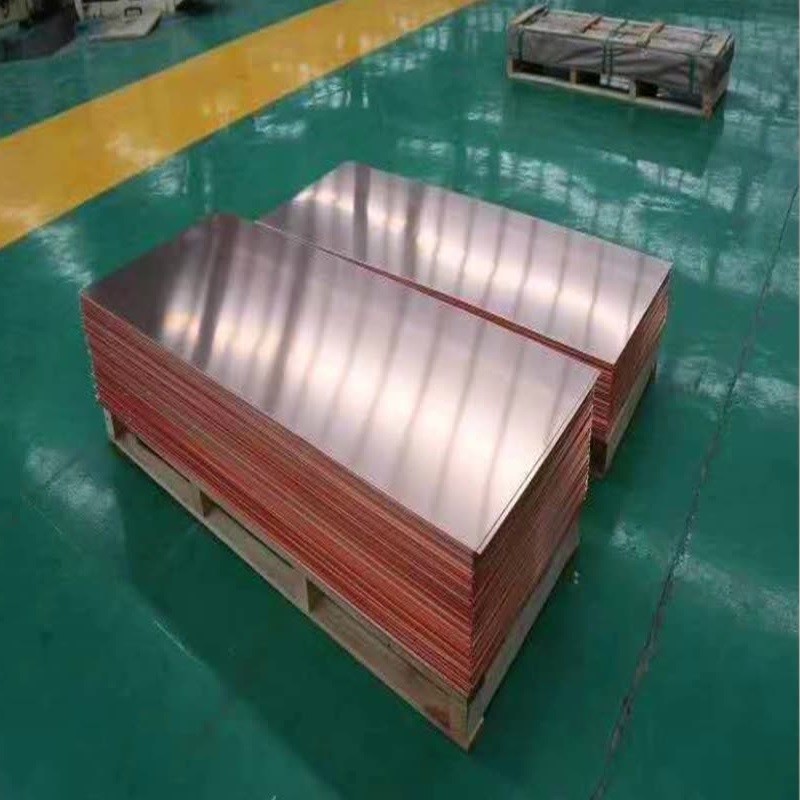

C10200 / TU1 / 102 Copper Plate & Sheet Oxygen Free Copper ASTM EN DIN Standard
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C10200 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |

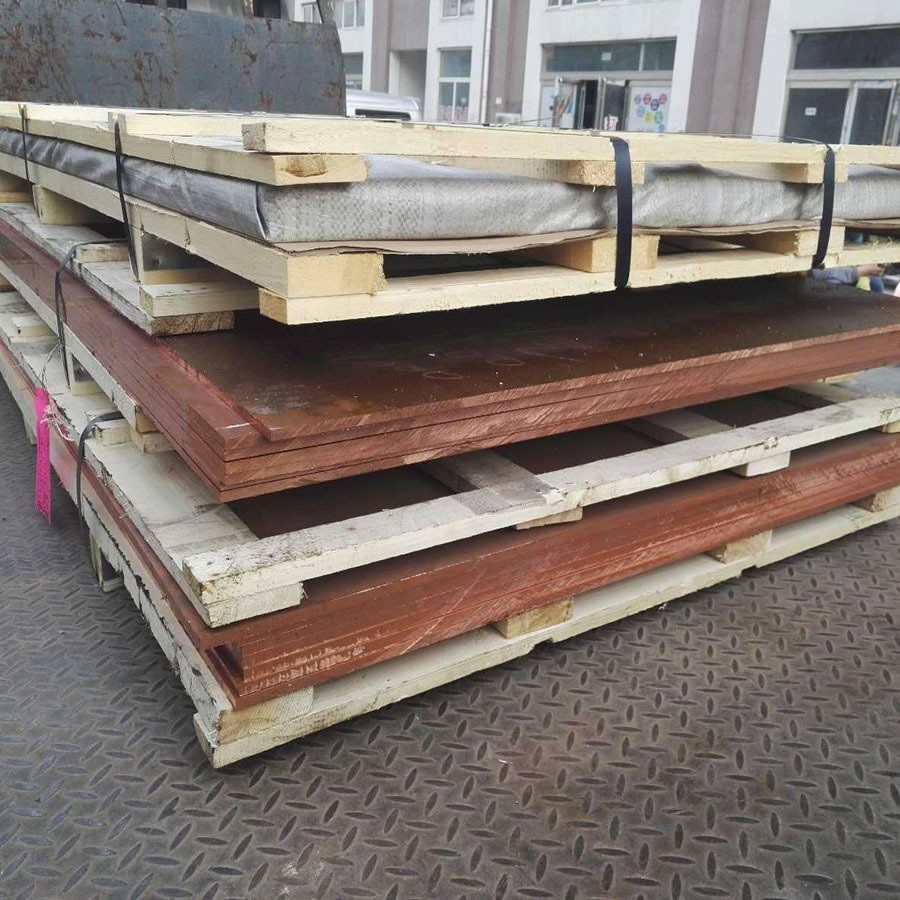

| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C10200 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 0.5 - 60.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | TU1 Copper Plate & Sheet,C10200 Copper Plate & Sheet,102 Copper Plate & Sheet |
||
Product Description
C10200 / TU1 / 102 Copper Plate & Sheet Oxygen Free Copper ASTM EN DIN Standard
|
Product name
|
Copper Plate & Sheet |
| Copper and copper alloy grade |
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
| Width | Within 1500mm Custom Cutting any width as request |
| Thickness | 0.5 - 200.0mm |
|
Length |
1m 2m 3m 6m or custom cutting any length as request |
| Standard | ASTM EN DIN JIS GB |
| Other products | Plate, Sheet, Coil , Pipe, Round Bar, Square Bar, Flat Bar, Hexagonal Bar.etc |
Our C10200 Copper Plate & Sheet Thickness
| 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.7mm | 0.8mm |
| 0.9mm | 1.0mm | 1.2mm | 1.5mm | 2.0mm | 2.5mm |
| 3.0mm | 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm |
| 12.0mm | 14.0mm | 16.0mm | 20.0mm | 22.0mm | 24.0mm |
| 25.0mm | 28.0mm | 30.0mm | 35.0mm | 40.0mm | 45.0mm |
| 50.0mm | 55.0mm | 60.0mm | 65.0mm | 70.0mm | 75.0mm |
| 80mm | 85.0mm | 90.0mm | 95.0mm | 100.0mm | within200mm |
Copper 102 is an oxygen-free copper with extremely high electrical conductivity and good formability. These characteristics make it particularly useful for electrical connectors.
Copper 102 can be deep-drawn from the annealed temper.It is corrosion resistant in normal atmosphere and water. A thin adherent oxide film forms at elevated temperatures which prevents particle contamination and enhances glass to metal seals. The Copper 102 can be readily soldered and brazed. The absence of oxygen makes welds free of inclusions.
Nominal Composition
| COPPER 102 NOMINAL COMPOSITION | |
|---|---|
| Copper | 99.95% |
Mechanical Properties
| COPPER 102 MECHANICAL PROPERTIES | ||
|---|---|---|
| ANNEALED | COLD ROLLED | |
| Ultimate Tensile Strength | 35,000 PSI | 57,000 PSI |
| Yield Strength (0.2% Offset) | 10,000 PSI | 53,000 PSI |
| Elongation in 2” * | 40% | 2% |
| Grain Size | 0.020 mm | - |
| Modulus of Elasticity (Tension) | 17 x 10+6 PSI | - |
| Poisson’s Ratio | 0.32 | - |
*The measured elongation will be less as thickness decreases to 0.002” and less.
These values may be adjusted by control of process variables – consult HPM for desired values.
Physical Properties
| COPPER 102 PHYSICAL PROPERTIES | |
|---|---|
| Density | 0.323 lbs/cu.in. |
| Melting Point (Approx.) | 1080°C |
| Electrical Resistivity @ R.T. | 1.71 Microhm·cm |
| Temperature Coefficient of Resistivity (0 to 100°C) | 3900 PPM/°C |
| Electrical Conductivity @ R.T | 586 MEGMHO·cm |
| Thermal Expansion Coefficient (20° to 100°C) | 7.0 X 10-6/°C |
| Thermal Conductivity @ R.T. | 390 W/m·K |
| Magnetic Attraction | None |
