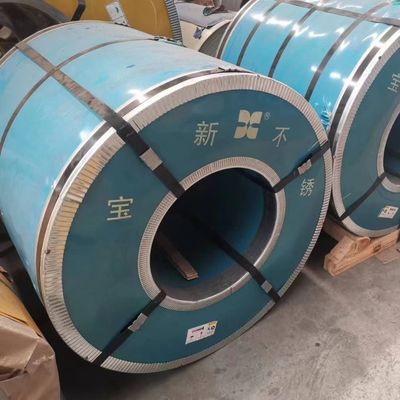

EN 1.4512 Stainless Steel Sheet & Plate Thickness 0.4 - 3.0mm Cold Rolled TISCO Brand
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 409L |
| Minimum Order Quantity | 500 kgs |
| Price | 1410-1620USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | Stainless Steel 409L |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | cold rolled stainless steel sheet,stainless steel cold rolled sheet,cold rolled steel sheet |
||
Product Description
EN 1.4512 Stainless Steel Sheet & Plate Thickness 0.4 - 3.0mm Cold Rolled TISCO Brand
Products Specification
| Products Name | 409L Stainless Steel Sheet |
| Standard | ASTM EN JIS GB BIS |
| Thickness | 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm |
| Surface | 2B 2D or process other surface as request |
| Standard Size | 1219*2438mm 1000*2000mm |
| Service | Slit Cutting, bending , surface treatment |
| Other Grade | 200 Series: 201 202 |
| 300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347 | |
| 400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446 | |
| Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy | |
| MOQ | 500 kgs |
| Packing | Wooden Pallets and waterproof paper |
Overviews & Features
Grade 409 / 409L is a titanium stabilized Ferritic stainless steel, most commonly known for use in automotive exhaust systems. It features good mechanical properties and high temperature corrosion resistance. As a matter of fact, 409 / 409L as a chromium stainless steel can also be used in applications where weldability and corrosion protection are demanded. Although it is susceptible to rust formation, rarely used for decoration purpose, 409 / 409L stainless steel demonstrates excellent corrosion resistance against gas corrosion.
Key Features:
- It has a lower chromium composition.
- Has a good combination of heat and corrosion resistance
- Good formability and excellent flexibility
Product Forms Available:
It can be cut, blanked stretch formed and drawn: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, and Chequered Plate
409L Stainless Steel Composition
The chemical composition of 409L ss is as follows: iron (Fe) balance; chromium (Cr) 11.5-14%; molybdenum (Mo) 0.5-1%; manganese (Mn) 1%; phosphorus (P) 0.045%; sulfur (S) 0.03%; silicon (Si) 1%.
| Grade | C (max) | Si (max) | Mn | Cr | Ni | P(max) | S (max) | Ni(max) | Other Elements |
|---|---|---|---|---|---|---|---|---|---|
| SS 409L | 0.03 | 1.00 | 1.00 | 10.50-11.70 | 1.5 max | 0.040 | 0.030 | 0.50 | Ti=6X(C+N)Min., 0.75Max |
| σb (Mpa) | σs (Mpa) | δ% | HB | HRB | HV |
|---|---|---|---|---|---|
| ≥ | ≥ | ≥ | ≤ | ≤ | ≤ |
| 380 | 170 | 20 | 179 | 88 | / |
| ASTM / AISI | DIN | JIS | GB |
|---|---|---|---|
| 409 / 409L | 1.4512 | SUH409 / SUH409L | 06Cr11Ti |
Applications:
- 409L steel is used in automotive exhaust systems
- Heat exchangers
- Catalytic converter systems
- Culverts
- Home heating systems
- Automotive thermostats
- Fuel filters
Tags
Grade 409 / 409L, Type 409 / 409L, Inox 409 / 409L, AISI 409 / 409L, SUH409 / 409L, 1.4512, UNS S40900, UNS S40903, Acero 409 / 409L.
