TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C10200 / TU1 |
| Minimum Order Quantity | 200 kgs |
| Price | 8 - 9 USD/Kg |
| Packaging Details | wooden pallets |
| Delivery Time | 5 - 10 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Flta Bar | Grade | C10200 / TU1 |
|---|---|---|---|
| Standard | ASTM GB EN DIN JIS | Thickness | 3.0 - 40.0mm |
| Width | Within 1000mm | Length | 6m Or Custom As Request |
| Certificate | EN 10204-3.1 | Other Products | Pipe , Round Bar, Strips |
| Highlight | Copper Flat Bar,Copper Flat Stock,Copper Flat Bar Stock |
||
Product Description
TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar
|
Product name
|
Copper flat bar |
| Copper and copper alloy grade |
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
|
|
Size
|
Round Bar: 6mm - 200mm
|
|
Square Bar: 4x4mm - 200x200mm
|
|
|
Hex Bar: 8x8mm - 100x100mm
|
|
|
Flat Bar: 20x2mm - 200x20mm
|
|
|
Length
|
2m,3m,5.8m,6m, or as required.
|
|
Processing
|
Extrusion/cold drawn
|
|
Temper
|
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
|
|
Surface finish
|
Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
|
Oxygen-Free Copper C10200
Oxygen Free Copper C10200 is an ideal material for applications in which extremely high electrical conductivity and resistance to hydrogen embrittlement are vital. In application, where glass-to-metal seals are required, this material provides the added advantage of developing an adherent, non-scaling oxide at elevated temperatures. It is corrosion resistant in normal atmosphere and water. It achieves a minimum 100% IACS conductivity rating.
Oxygen Free Copper C10200 possesses useful qualities such as high ductility & high impact strength, good thermal conductivity, good creep resistance, low volatility in high vacuum condition and can be readily soldered and brazed.
Grade Specification
Copper has a very wide range of applications, covering energy and petrochemical industry, transportation, electronics and electric power industry, machinery and metallurgy industry, and other fields has a pivotal role, the division of each country for copper brand is also the same, my company specializing in the production of various specifications of copper products, cost-effective, large inventories.
| China | Germany | Europe | International | US | Japan | ||
| GB | DIN | EN | ISO | UNS | JIS | ||
| - | Kruzzeichen | Number | Symbol | Number | Symbol | Number | Number |
| TU2 | OF-Cu | 2.004 | Cu-OFE | CW009A | Cu-OF | C10200 | C1020 |
| T2 | Se-Cu | 2.0065 | Cu-ETP | CW004A | Cu-ETP | C11000 | C1100 |
| TP2 | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C12000 | C1220 |
APPLICATIONS
• Electrical & Electronic Conductors
• Superconductor matrixes
• Lead-in Wires & Anodes for Vacuum Tubes
• Vacuum Seals & Glass-to-Metal Seals
• Power Substations
• Coaxial cables
• Microwave Tubes & Rectifiers
• Plasma
TYPICAL CHEMICAL COMPOSITION
Minimum 99.95% Copper

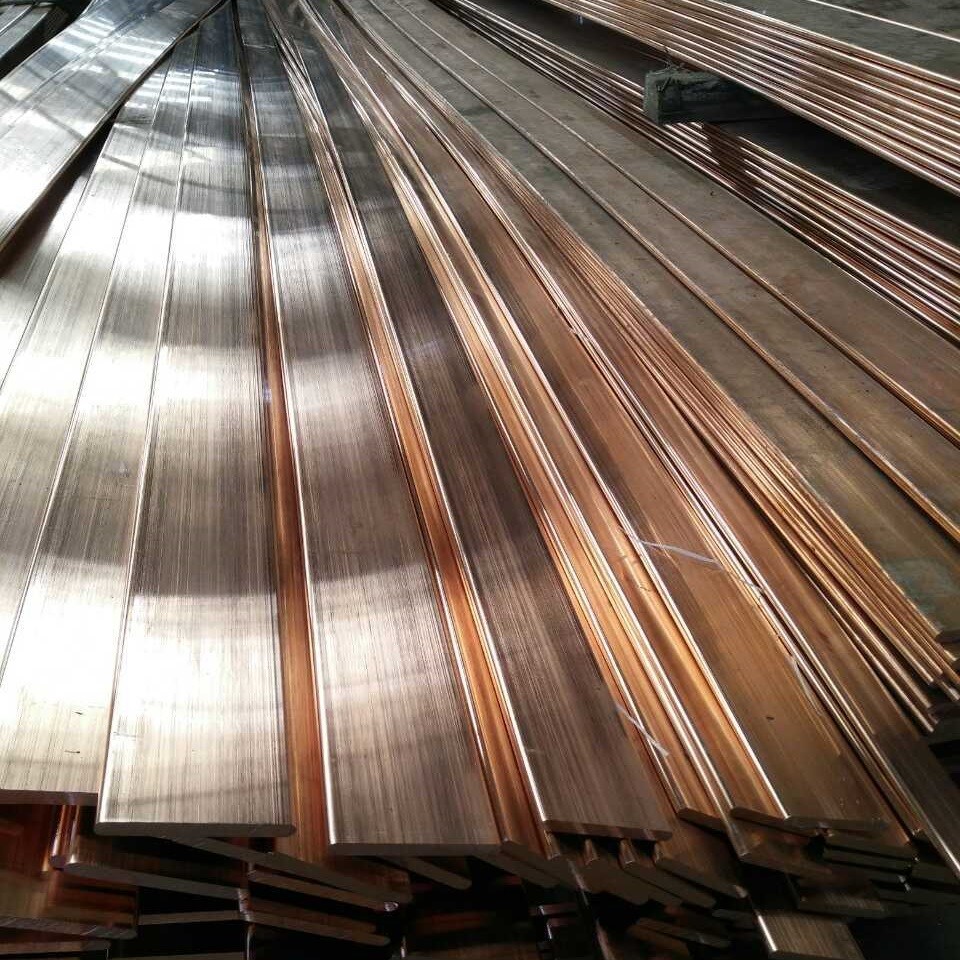

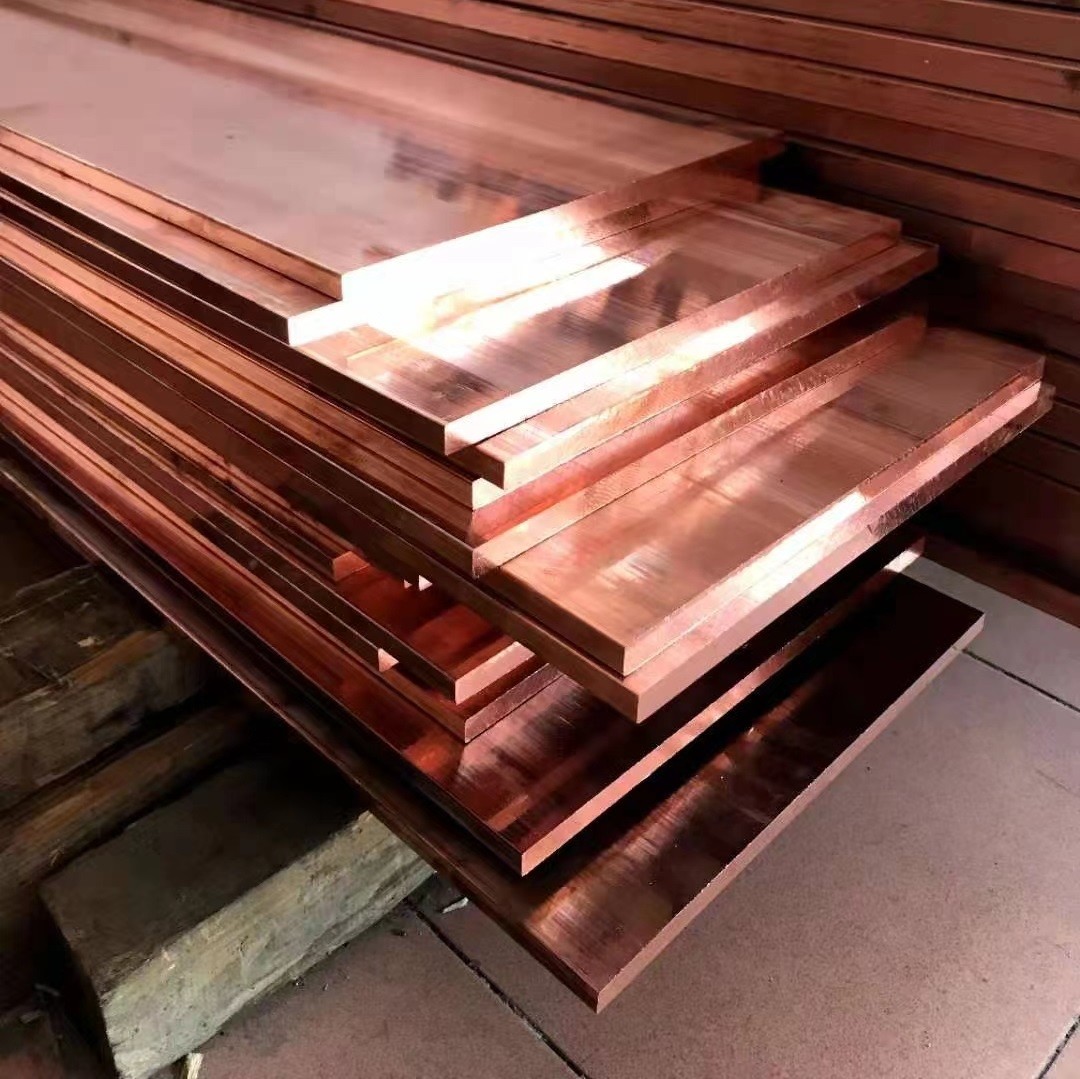

Warehouse Display

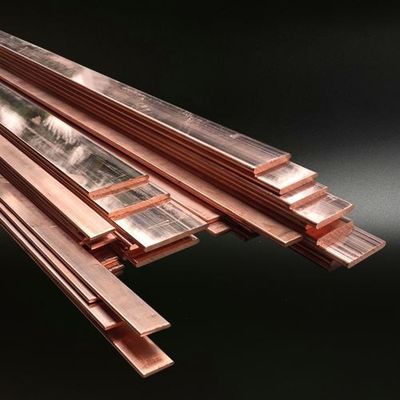

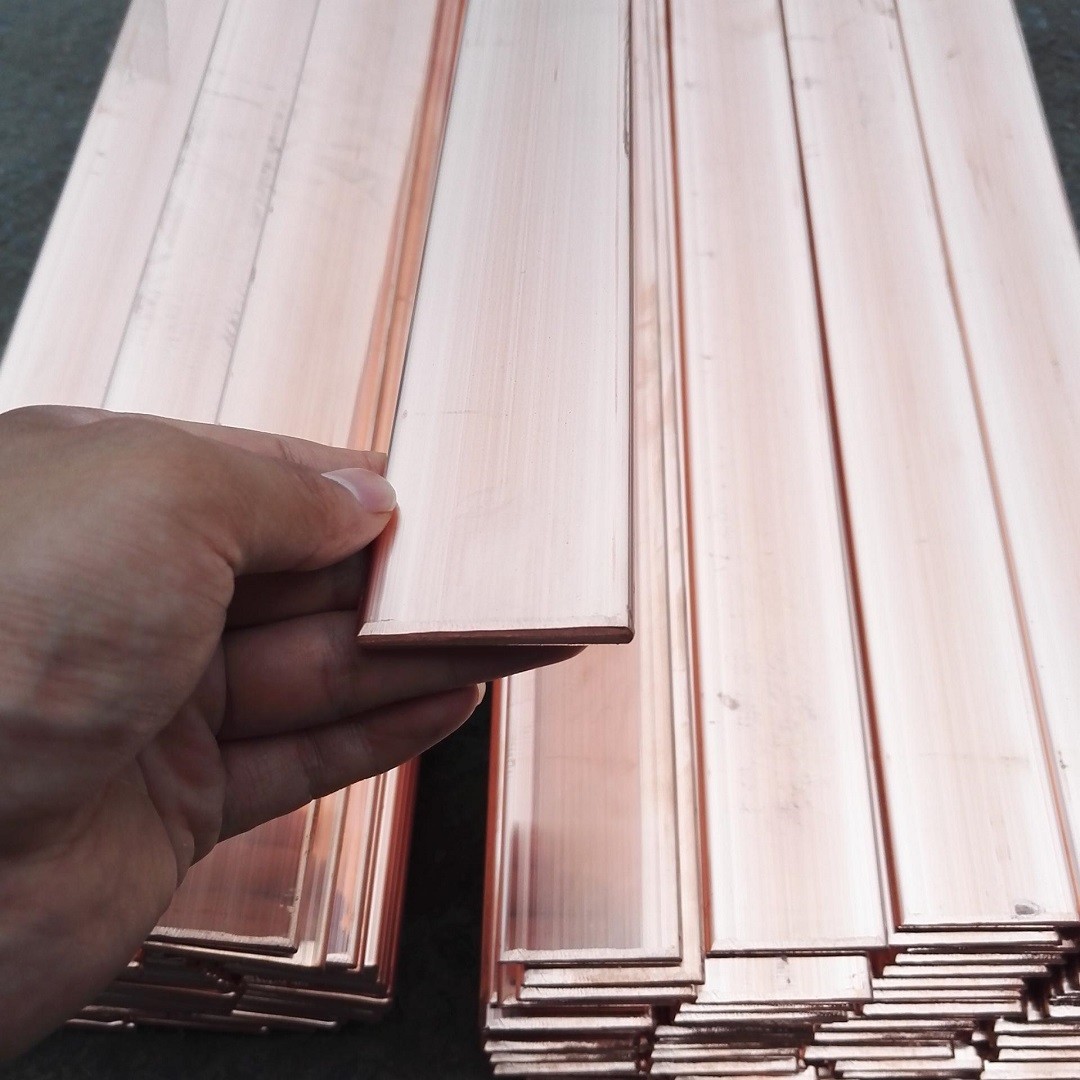

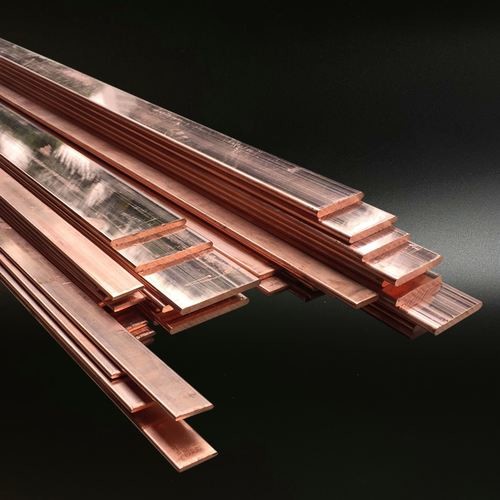

Products Show
