17-4PH Stainless Steel Round Bar Diameter 6 - 300mm Hot Rolled & Cold Drawn SS Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 309S 310S 2205 17-4PH 2507 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Angle Bar / Channel Bar | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316LMod 309S 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description
17-4PH Stainless Steel Round Bar Diameter 6 - 300mm Hot Rolled & Cold Drawn SS Bar
More Specification of 17-4PH Stainless Steel Bar
| Products | 17-4ph Stainless Steel Bar |
| Diameter | 6 - 300mm |
| Standard | ASTM A276 |
| Length | 6000mm or cutting any length as request |
| Type | Hot rolled/ cold drawn / forged |
| Surface | Black , bright |
| MOQ | 500 kgs |
| Service | cutting , heat treatment (solid solution , aging) |
| Other grade |
201 202 303 303Se 304 304L 309S 310S 316L 316Ti 316LN 316LMod 317L 317LN 321 347 410 420 416 430F 431 440A/B/C 904L 2205 2507 254SMO 654SMO 253MA.etc |
| Loading Port | Shanghai Port |
| Packing | wooden box or as request |
| Deliver time | 5 - 12 days |
Introduce of 17-4PH Stainless Steel
17-4 Stainless Steel Bar UNS S17400 (Grade 630)
17-4 stainless steel bar, also known as UNS S17400, 17-4 PH and Grade 630, is one of the original precipitation hardened grades developed in the 50’s. Primarily comprised of 17% chromium, 4% nickel, 4% copper, with the balance being iron. There are also trace amounts of manganese, phosphorus, sulfur, silicon, columbium (or niobium) and tantalum. Stainless Steel 17-4 PH delivers an excellent combination of oxidation and corrosion resistance. Other characteristics include high strength, toughness, and quality mechanical properties at temperatures up to 600° F. Engineers and designers frequently choose Stainless Steel 17-4 PH due to its high strength and superior corrosion resistance when compared to many other stainless steels.
Stainless Steel 17-4 PH can be forged, welded and formed. Machining may be formed in the solution-annealed state, or in the final heat treat condition. Desired mechanical properties such as ductility and strength can be achieved through heating the material at various temperatures.
Heat Treatment Informations of 17-4PH Stainless Steel Bar
| COND A | STOCKING DIAMETERS | 1/2” TO 20” |
|---|---|---|
| MATERIAL LENGTHS | UP TO 24’ | |
| COND HH1150 (H1150D) |
STOCKING DIAMETERS | 1/2” TO 15” |
| MATERIAL LENGTHS | UP TO 24’ | |
| COND H1150 | STOCKING DIAMETERS | 1/2” TO 9” |
| MATERIAL LENGTHS | UP TO 24’ | |
| COND H1075 | STOCKING DIAMETERS | 1/2” TO 5-1/2” |
| MATERIAL LENGTHS | UP TO 24’ | |
| COND H1025 | STOCKING DIAMETERS | 1/2” TO 5-1/2” |
| MATERIAL LENGTHS | UP TO 24’ |
Grade Specification of 17-4PH
| UNS | TYPE | AMS | ASTM | FEDERAL | CHARACTERISTICS |
|---|---|---|---|---|---|
| S17400 | 17-4 PH | 5622 5643 |
A-564 | – | Combines excellent corrosion resistance, high strength/hardness, low temperature hardening and good fabricating characteristics. |
Chemical Composition of 17-4PH Stainless Steel
| C | MN | P | S | SI | CR | NI | MO | CU | OTHER | M/NM |
|---|---|---|---|---|---|---|---|---|---|---|
| .07 | 1. | .04 | .03 | 1. | 15. – 17.5 | 3. – 5. | 3. – 5. | Cb + Ta = .15 – .45 | M |
Packing & Shipping Informations
| Packing Method | wooden box or ppgabs |
| Weight of package | within 2 Ton each package |
| Loading Port | Shanghai Port, Ningbo Port |
| Loading Quantity | 25 Tons each 20ft /40ft container |
| Trade Term | EXW CIF CFR FOB |
Standard Diameter of our 17-4PH Stainless Steel Bar
| Type | Diameter |
| Hot Rolled Bar | 6mm 8mm 10mm 12mm 14mm 15mm 18mm 20mm 22mm 25mm 28mm 30mm 32mm 35mm 38mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 130mm 140mm 150mm 160mm 170mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm 260mm 270mm 280mm 300mm |
| Bright Bar | 4mm 5mm 6mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 50mm 55mm 60mm or polsihing process large diameter as request |

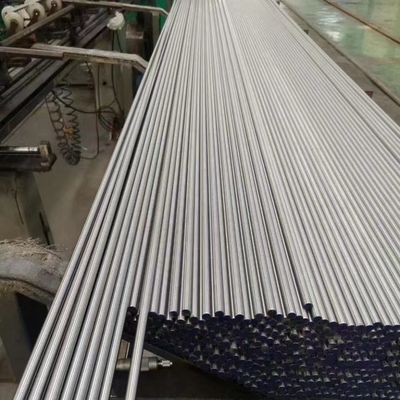

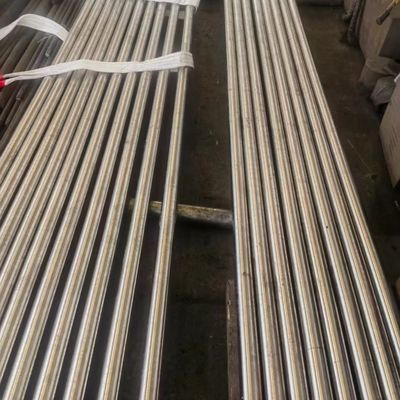

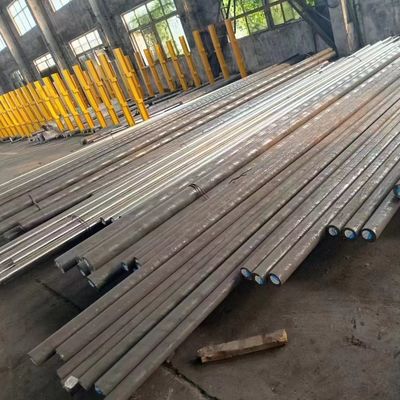

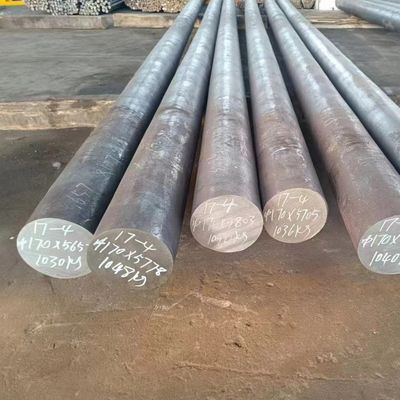

Products Picture
