EN 10088 Grade 1.4301 Stainless Steel Pipe & Tube SCH10S SCH40S SCH80S Certifocate 3.1
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
EN 10088 Grade 1.4301 Stainless Steel Pipe & Tube SCH10S SCH40S SCH80S Certifocate 3.1
304 Stainless Steel Pipe
304 is the most versatile and widely used of all stainless steels. Its chemical composition, mechanical properties, weldability and corrosion/oxidation resistance provide the best all-round performance stainless steel at relatively low cost. It also has excellent low-temperature properties and responds well to hardening by cold working. If the potential for intergranular corrosion in the heat-affected zone exists, 304L is recommended.
Product Information:
| Use: | Cookware, food and beverage, pharmaceutical, oil and gas, tank and process vessels for larger variety of corrosive liquids |
| International Specs: | S30400, EN 1.4301 ASTM A312 (seamless and welded) |
| Material: | Austenitic Stainless Steel |
| Dimensions / Sizes Available: | |
| Diameter (inches): | Standard ASTM ½” to 12” schedule 10 and schedule 40 (15 – 300 NB) |
| Material Size: | 6000 |
| Material Finishes: | No1 |
| Special Features: | Extremely tough and ductile. Readily fabricated by cold forming |
| Information: | Pipe larger than 300NB. Available on request. |
304H Stainless Steel Pipes and Tubes Composition
Composition ranges for 304 grade stainless steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. |
- 0.08 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- | 8.0 10.5 |
- 0.10 |
| 304L | min. max. |
- 0.030 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- | 8.0 12.0 |
- 0.10 |
| 304H | min. max. |
0.04 0.10 |
- 2.0 |
- 0.75 |
-0.045 | - 0.030 |
18.0 20.0 |
- | 8.0 10.5 |
- |
304 Stainless Steel Pipes and Tubes Mechanical Properties
Mechanical properties of 304 grade stainless steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
304 Stainless Steel Pipes and Tubes Physical Properties
Physical properties of 304 grade stainless steel in the annealed condition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Regular Size we can supply
NPS |
OD | SCH 5S | SCH 10S | SCH 40S | SCH 80S |
| 1/4 | 13.72 | – | 1.65 | 2.24 | 3.02 |
| 3/8 | 17.15 | – | 1.65 | 2.31 | 3.2 |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 | 3.73 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 | 3.91 |
| 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 |
| 1.25 | 42.16 | 1.65 | 2.77 | 3.56 | 4.85 |
| 1.5 | 48.26 | 1.65 | 2.77 | 3.68 | 5.08 |
| 2 | 60.33 | 1.65 | 2.77 | 3.91 | 5.54 |
| 2.5 | 73.03 | 2.11 | 3.05 | 5.16 | 7.01 |
| 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 |
| 3.5 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 |
| 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 |
| 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 |
| 6 | 168.28 | 2.77 | 3.4 | 7.11 | 10.97 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 | 12.7 |
| 10 | 273.05 | 3.4 | 4.19 | 9.27 | 12.7 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 | 12.7 |
| 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.7 |
| 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 |
| 18 | 457.2 | 4.19 | 4.78 | 9.53 | 12.7 |
| 20 | 508 | 4.78 | 5.54 | 9.53 | 12.7 |
| 22 | 558.8 | 4.78 | 5.54 | – | – |
| 24 | 609.6 | 5.54 | 6.35 | 9.53 | 12.7 |
| 26 | 660.4 | – | – | – | – |
| 28 | 711.2 | – | – | – | – |
| 30 | 762 | 6.35 | 7.92 | – | – |

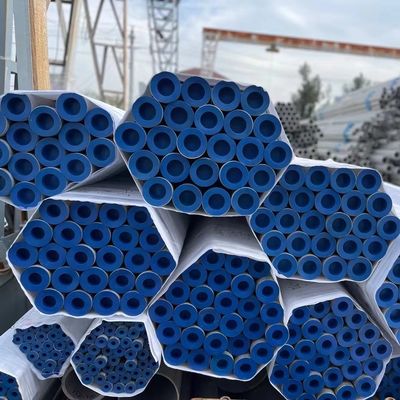

Packaging Informations:
- - Bundles (hexagonal)
- - Wooden Boxes
- - Crates (steel/wooden)
- - Special crates for U-Bend tubes with each radius separated
- - Packaging for SS 304H ASTM A312 Seamless Pipe as per customer's requirements
